CPS2 build not flashing

[marcusrushy]

Might transfer everything to another board and test each component. 🙃

[marqs]

If you suspect the PCB, you can just transfer FPGA, flash, regulators and R16-24 to be able to test JTAG.

[marcusrushy]

I give up. Cannot seem to get this working. Will have to buy one when I get some money.

[Daniel Yetman]

I’m curious as to whether you would be willing to sell your problem board?  I’d be interested in seeing what I can do with it, and I have a working board to test it against.

[marcusrushy]

I would yeah but don’t have the FPGA chip anymore.

[marcusrushy]

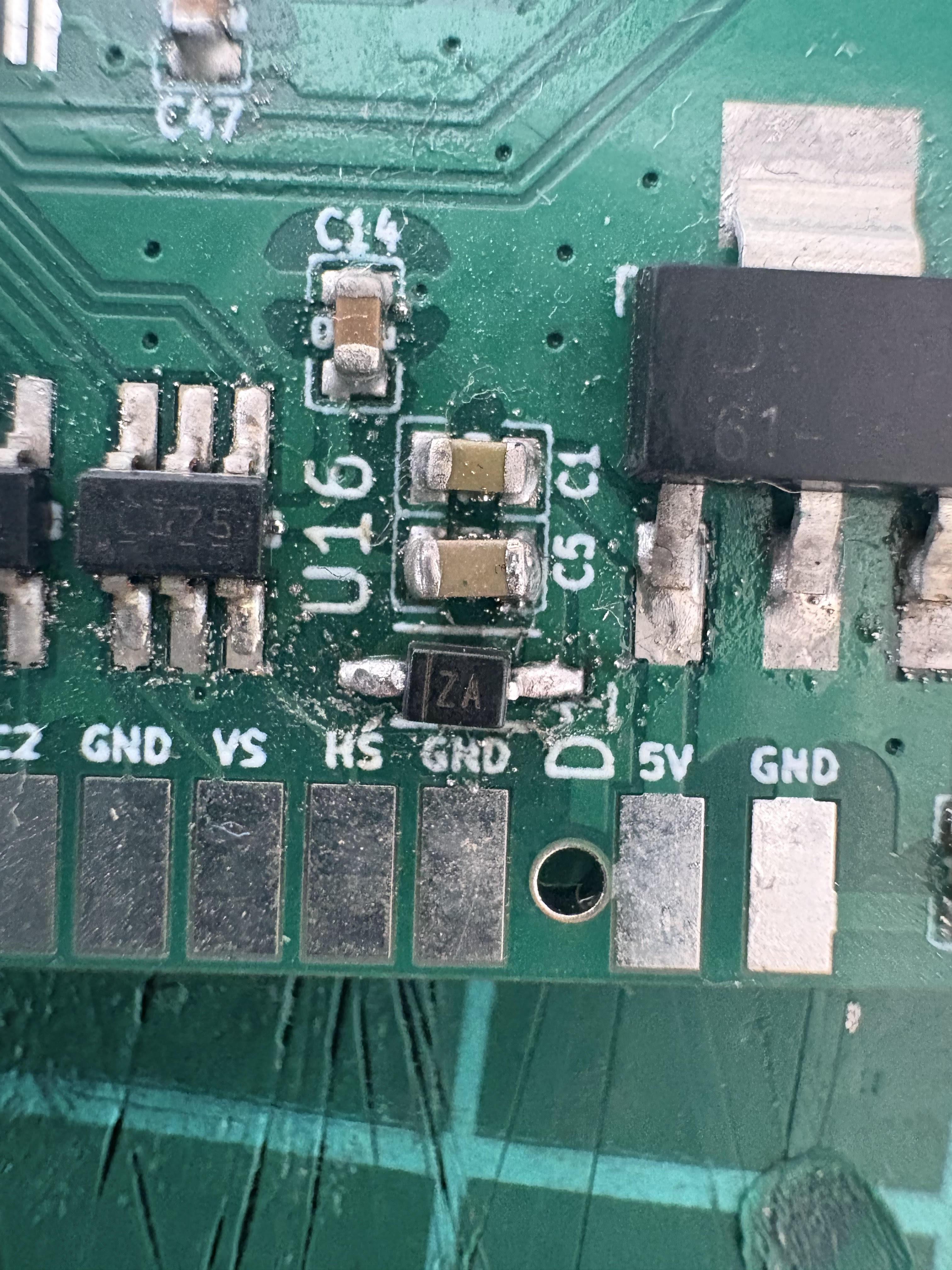

Having another go at this CPS2 build. Need to get another FPGA chip but been testing the diode in the picture with a multi meter. If I put the red lead on the right side and black on left side I get .668. If I put black on the right and red on the left I get .464. I thought I shouldn’t get any reading. Thanks

• This reply was modified 3 days, 10 hours ago by marcusrushy.

[marqs]

It looks like the diode is still installed the wrong way.

[marcusrushy]

I checked with a multi meter before installing which way round to put it

[marcusrushy]

Found a picture on Google and yeah it looks like it is on the wrong way 🙂

[marcusrushy]

[marcusrushy]

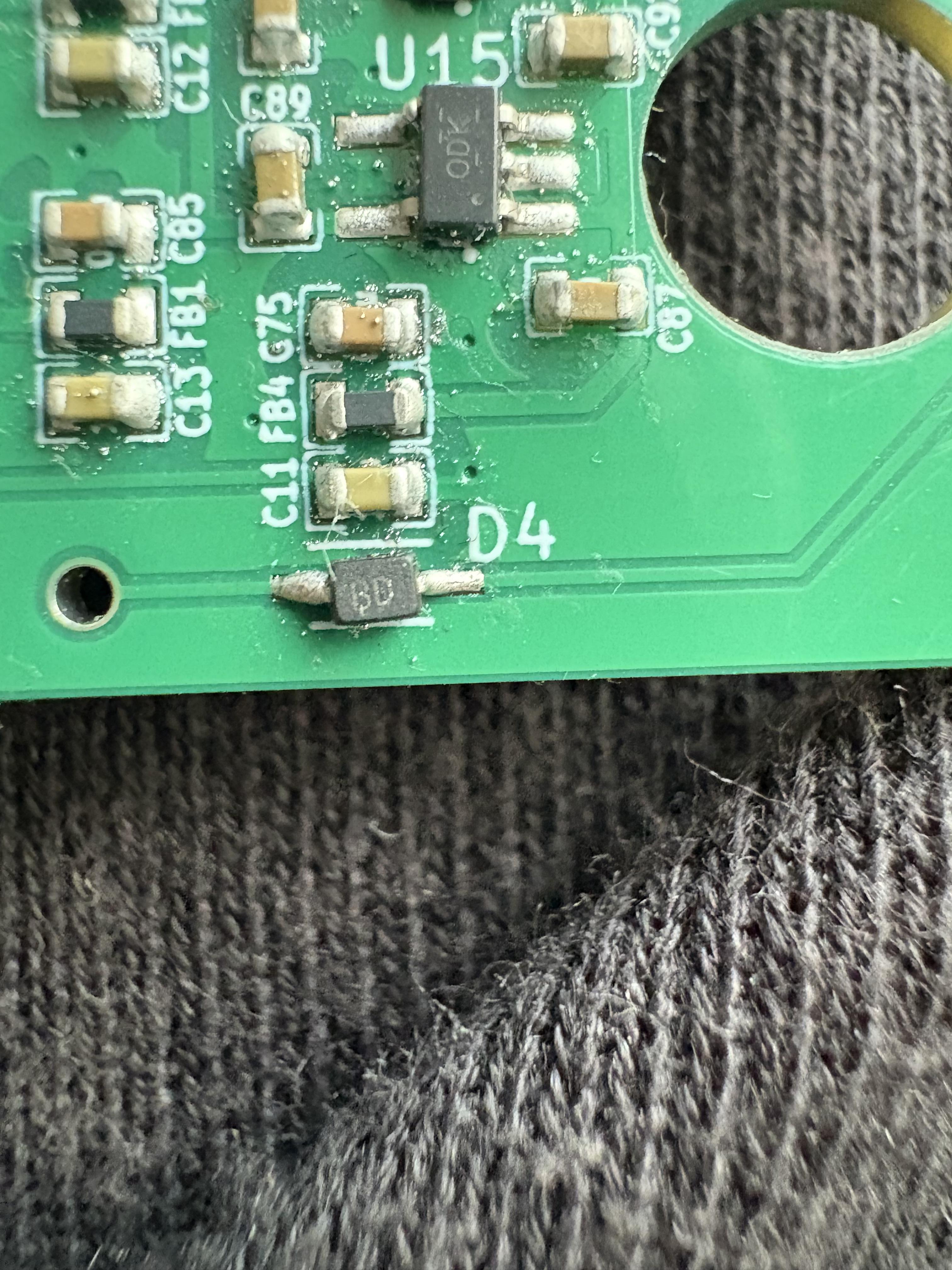

Is this diode the correct way round. Thanks

[marqs]

Is this diode the correct way round. Thanks

Doesn’t seem to be.

[marcusrushy]

Wow I am bad at diodes

[marcusrushy]

Diodes the correct way round now. Will be ordering an FPGA in the next month or so. Will keep you updated. Thanks
