IIntegrated LS08 on a 95682A-3 with no IN1/IN2 pads

NewHome › Forums › CPS2 digital AV interface › IIntegrated LS08 on a 95682A-3 with no IN1/IN2 pads

Tagged:

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • March 5, 2025 at 2:55 PM #65251
    jbrlll
    Participant

      Hello,

      Does anybody know where i should connect VS/HS on an integrated LS08 with no IN1/IN2 pads?  The github only shows the connection point with factory breakout LS08 that has IN1/IN2.

      Thank you.

      March 5, 2025 at 3:46 PM #65252
      jbrlll
      Participant

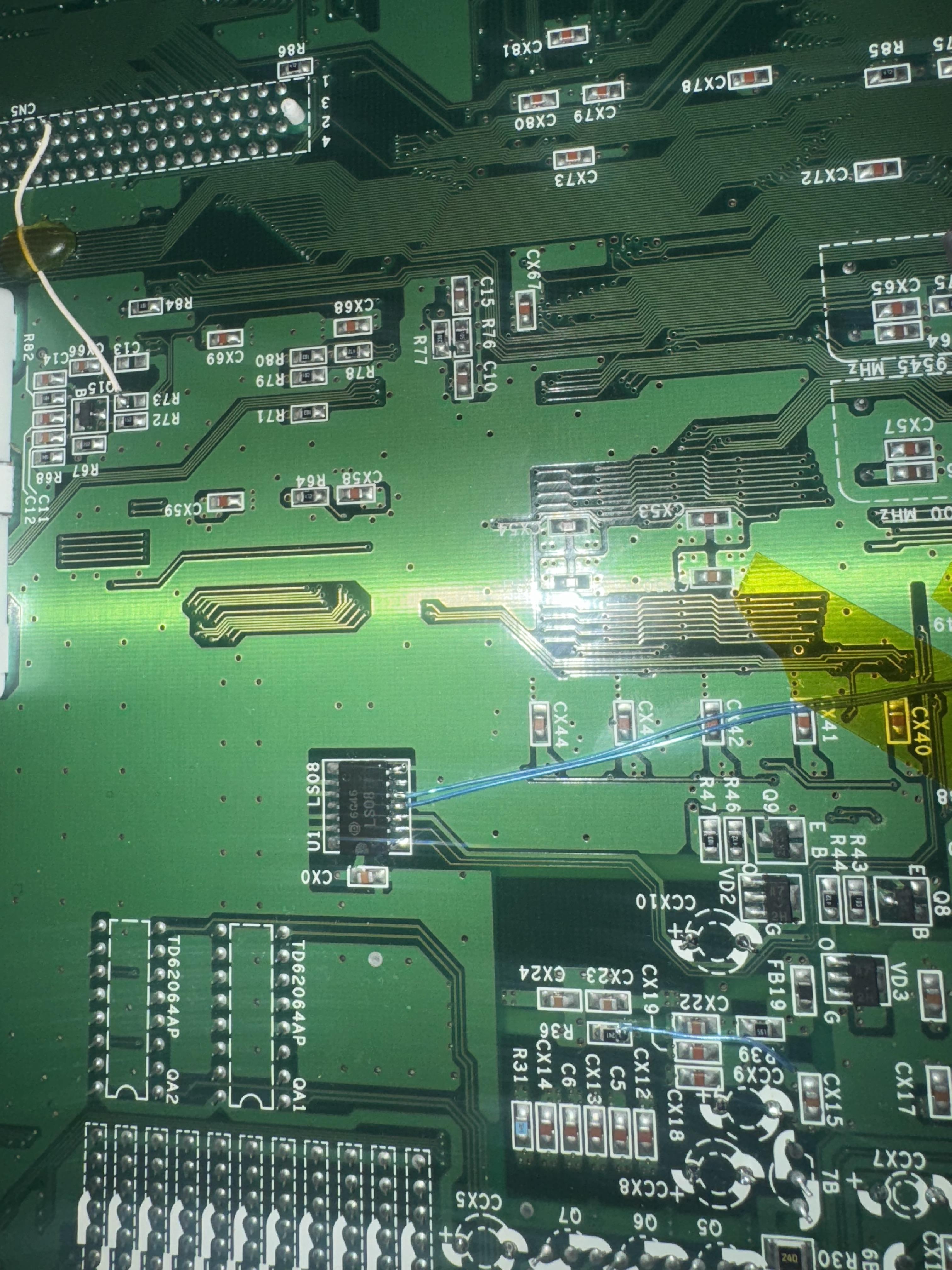

        Integrated LS08 This is my LS08 and from the GitHub picture it looked like IN1 was traced to the pin I have the lower blue wire soldered to (HS) and IN2 was traced to the upper blue wire I have soldered to (VS). But that’s me zooming in on the pic and trying to follow traces I can’t quite see. With this wiring I’m getting a total black screen but my OSD works perfect and is crystal clear. Jamma audio and video are perfect.

        March 5, 2025 at 7:21 PM #65255
        jbrlll
        Participant

          https://www.arcade-projects.com/threads/cps2-digitial-av-kit-for-cps-iii.30776/post-443012

          loop closed, link to the answer to my question…might be github worthy.

          March 6, 2025 at 4:54 PM #65268
          BuckoA51
          Keymaster

            thanks for letting us know!
