  • May 13, 2026 at 8:17 PM #69424
    jdmx
    Participant

      Hi, i have a real PC-98 hooked up via BNC (https://krugman.net/ossc/) to the OSSC to an Elgato HD60S+ into my PC running OBS 32.1.2 on Linux Bazzite.

      Here is a showcase video of how laggy the input it. I know i can have many reason. I believe OBS and the Elgato aren’t Problem as they work fine with other devices (like a PS5) and the PC-98 also runs fine on a regular (albeit old) monitor:

      https://streamable.com/7pqghi

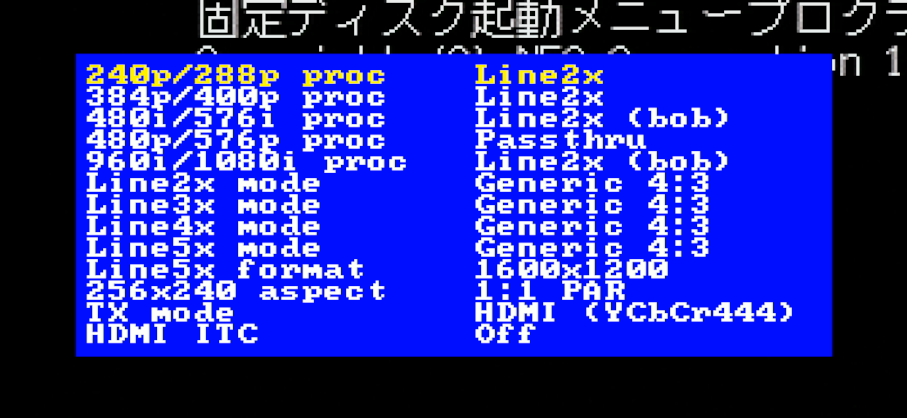

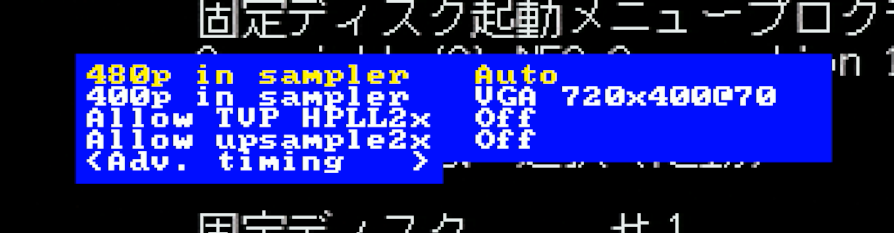

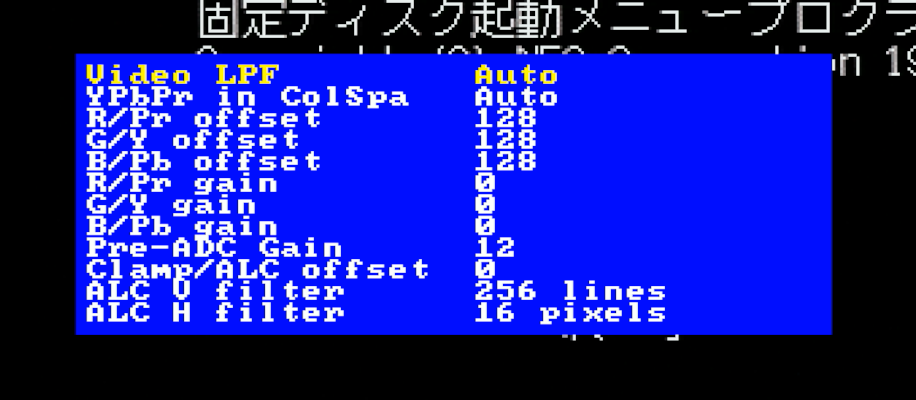

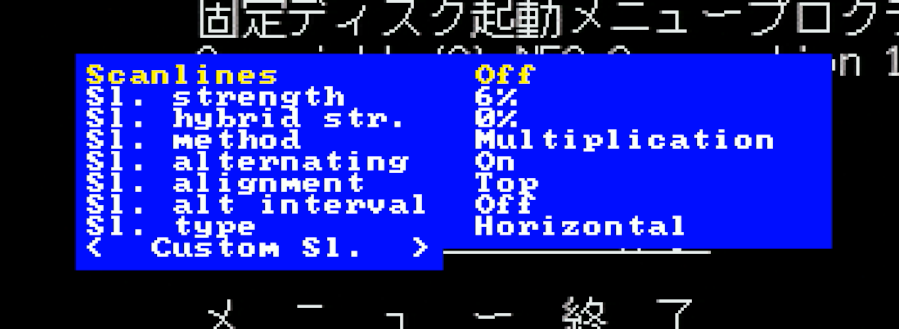

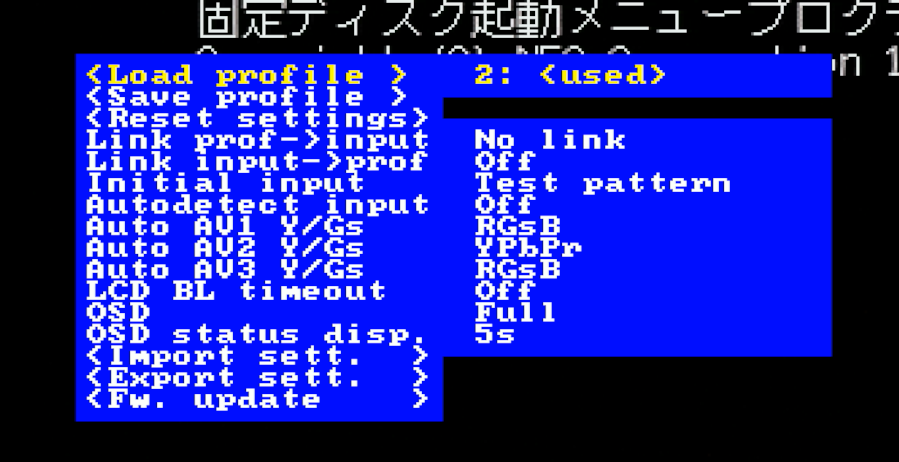

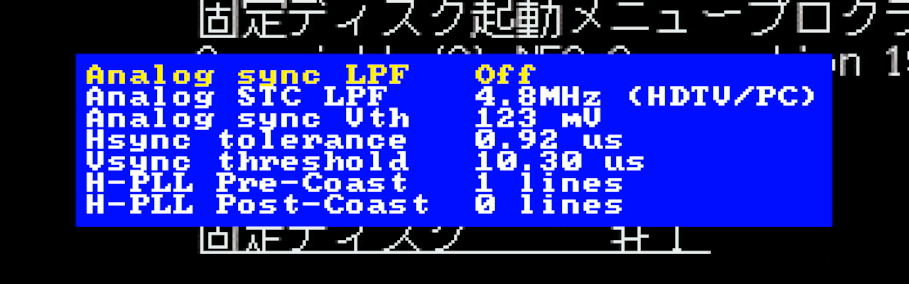

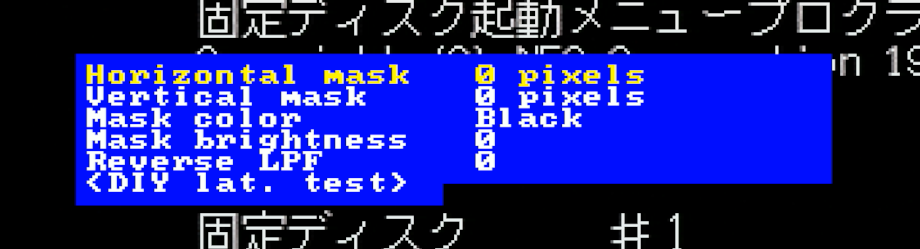

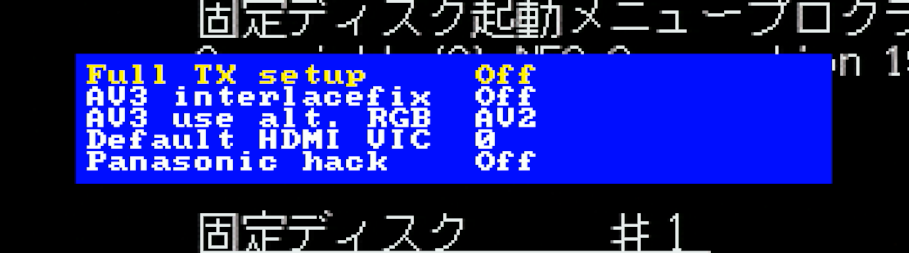

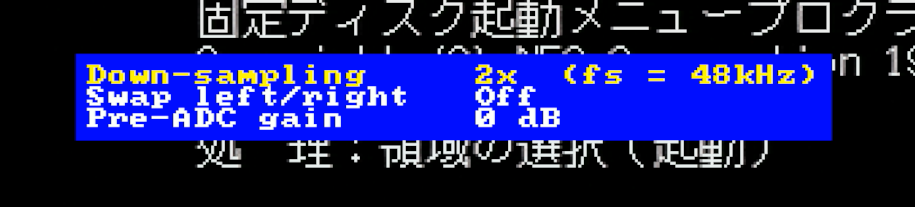

      And here are all my settings. Any help or suggestions are appreciated.

      If I should post any other information, please let me know. I’m not a total noob to this, but I am also far from an expert. 🙂



      Cheers





      • This topic was modified 3 weeks ago by jdmx.
      May 14, 2026 at 8:27 AM #69429
      marqs
      Participant

        Does the capture card properly support 55Hz sources and is capture framerate adjusted accordingly?

        May 28, 2026 at 1:42 PM #69577
        jdmx
        Participant

          Figured it out. Was a “fake” USB3-Cable…. extra got a different card (Elgato HD 60 X) to test it. didn’t work on either with the fake cable, worked on both with a proper usb3 cable….
