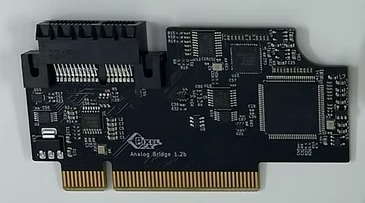

Morph4k Analog Bridge

Connect analogue video directly to your Morph4K scaler with the Morph4k Analog Bridge. Experience best in class, video game optimised scaling for your classic consoles and computers without the need for expensive digital video modifications or secondary scaling. The entire analogue video chain is now processed by the Morph4K, allowing for finer control and picture optimisation.

All analog bridges sold by VideoGamePerfection.com now output 44.1khz audio. If in doubt about the products capabilities, ask us or PixelFX directly. Do not believe click bait social media posts.

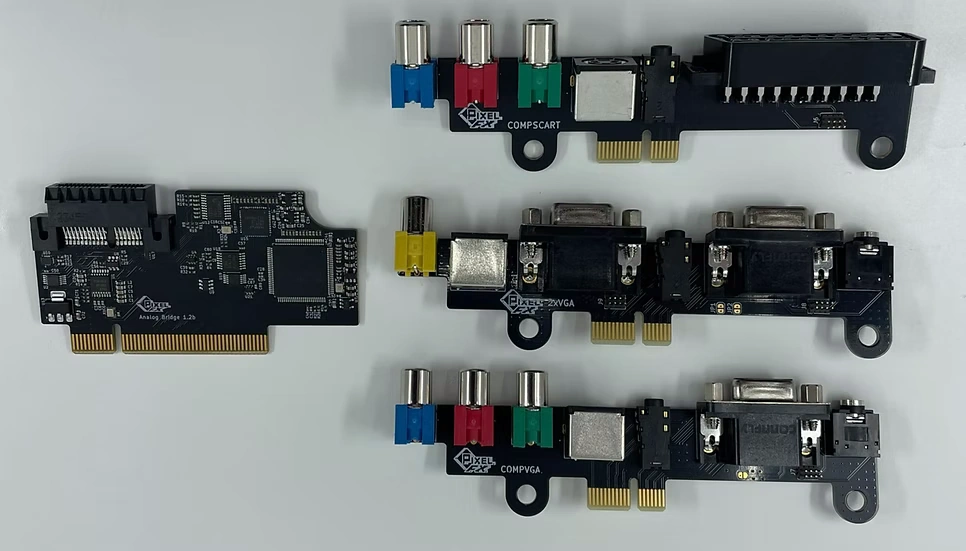

Each bridge comes with AV connectors and case back plate (in black). Choose whichever analog bridge configuration suits your needs, with the right inputs for your setup. Available connector cards are:

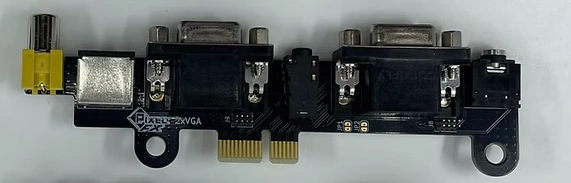

• Dual VGA + S-video and Composite (Please note, the Morph4K Analog bridge currently has some compatibility issues with some Extron switches*)

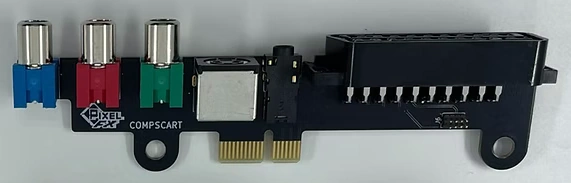

• Scart and Component  + S-video** (great for users of GamesCare or GScart switches)

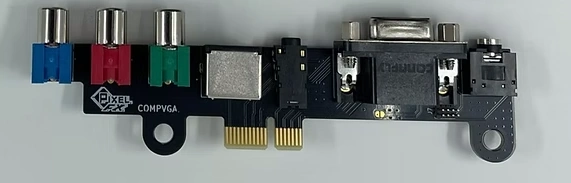

• VGA and Component + S-video**

All video ports accept all signal types. VGA connectors accept sync on green and composite sync (at TTL or 75 ohm). Audio inputs accept both analogue and digital (SPDIF) inputs.

* Users of Extron Crosspoint switches may find that interlace signals are detected and processed as 240p with the Analogue Bridge. PixelFX are aware of this problem and a fix is being worked on.

**Physical Composite and S-Video ports are shared with primary port B connection.

Installation Instructions

Please disconnect all power and connecting cables before dismantling your Morph. A video detailing how to install the analogue bridge can be found here.
