CPS3 Quick Solder Kit for CPS2 Digital

This kit will convert a CPS2 digital kit into a CPS3 digital kit. It’s basically this product (click here) but without the FPGA board. It is for customers who already purchased a CPS2 digital upgrade but now want to fit it to CPS3 hardware. It is a new design kit created by djanice1980 on the arcade-projects.com forum.

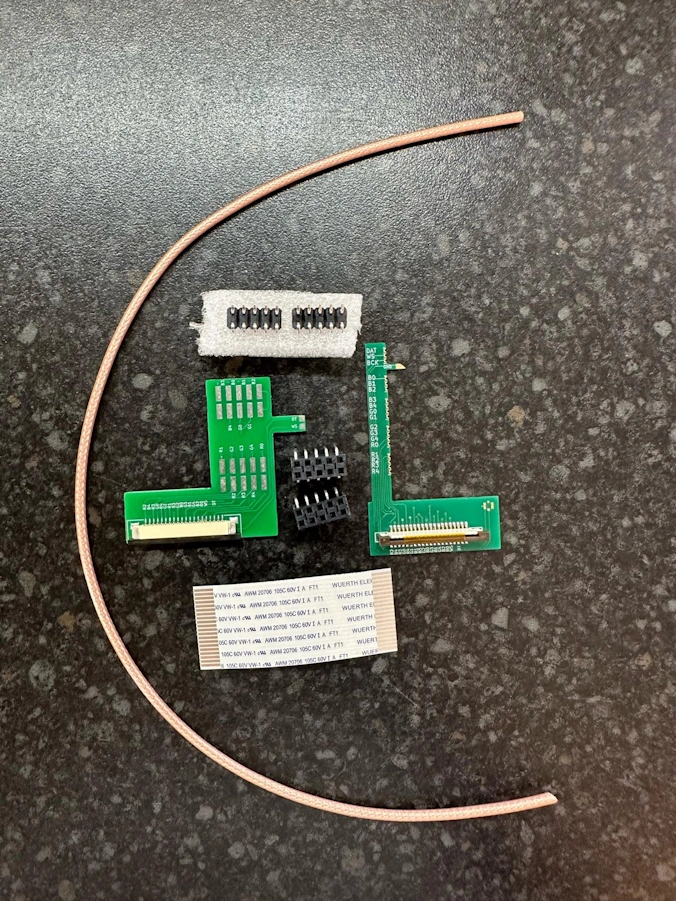

The quick solder kit Includes 2 PCB’s, a flex ribbon cable (5cm), 2 male headers and 30cm of coax cable, everything you need for an easy CPS3 digital installation. Optionally you can also purchase the kit with 2 x female headers if you need them.

Fitting Instructions

Please note that installing this modification requires soldering skills. Do NOT order this kit until you have read ALL of the fitting instructions and feel confident with carrying out the installation. Some community based support may be available in our forums but we CANNOT offer technical support with DIY fittings nor can we give refunds on components that have been damaged or destroyed due to incorrect use or failed installation attempts.

Fitting instructions and support can be found here and here.

If you need a professional fitting service for this part, click here.

Capcom, CP System II and CP System III are trademarks of Capcom Co. Ltd, CPS3 digital AV interface is NOT an official Capcom product.
