Morph 2K Video Scaler

First batch pre-order stock is due to arrive within the next few weeks.

Pre-orders for the first production batch of Morph 2K will open at 15:00 hours (Irish time, UTC+1) on the 5th June 2026. The window stays open until June 19th, or until the first batch sells out — whichever comes first. Units are expected to ship approximately 8–10 weeks after pre-orders close. Once the initial batch sells out, orders will pause and reopen when the next production run is ready.

Launch bundle (free with pre-order)

Every Morph 2K pre-ordered during the launch window ships with our adapter bundle at no additional cost — a €25 value:

• Pixel FX VGA2SCART adapter
• Dual RCA to 3.5mm audio adapter
• MicroSD Card

EU customers – Order direct from us for no nasty surprises at the border, no courier import handling fees, no duty, no currency conversion charges (for Eurozone countries), easier returns and cheaper shipping. US and international customers can order from us or directly from PixelFX.

Affordable and feature packed scaling

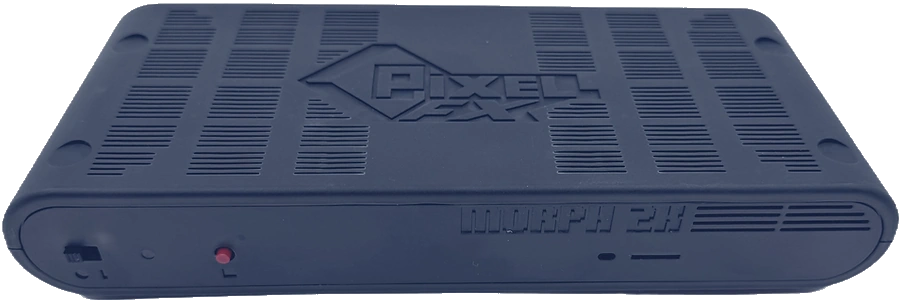

The Morph 2K is Pixel FX’s newest addition to the Morph video scaler lineup. The Morph 2K converts low resolution analogue video sources (240p up to 1080p input), to 1080p/1440p HDMI at 60Hz and with full 4:4:4 colour resolution. With powerful auto-sampling techniques, magic-lock and profiles, it’s an easy to use fully-custom video scaler. The Morph 2K will bring out the best from your video game consoles and retro computers.

The device supports high quality composite, s-video, SCART, component, and VGA input signals. It does this via the dual video input ports: mini-din (s-video) + triple RCA, and a universal SCART input. VGA signals can be used with Pixel FX’s passive VGA2SCART adapter (available soon, sold separately). The Morph 2K has a comprehensive audio input system, supporting both analogue and digital inputs.

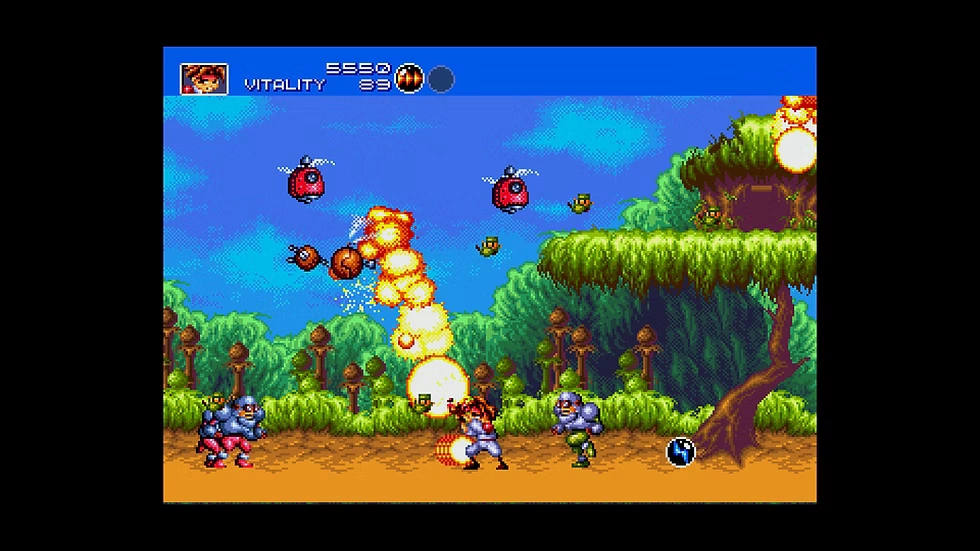

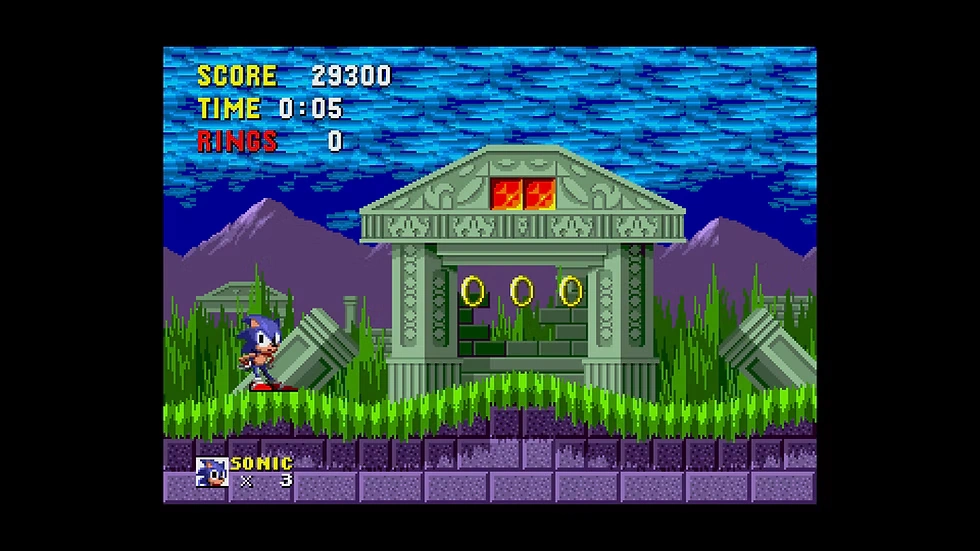

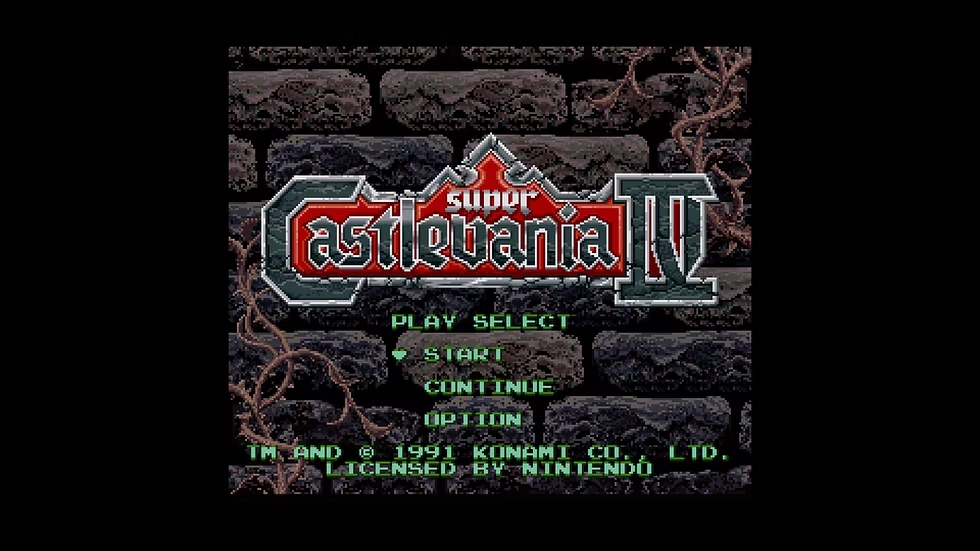

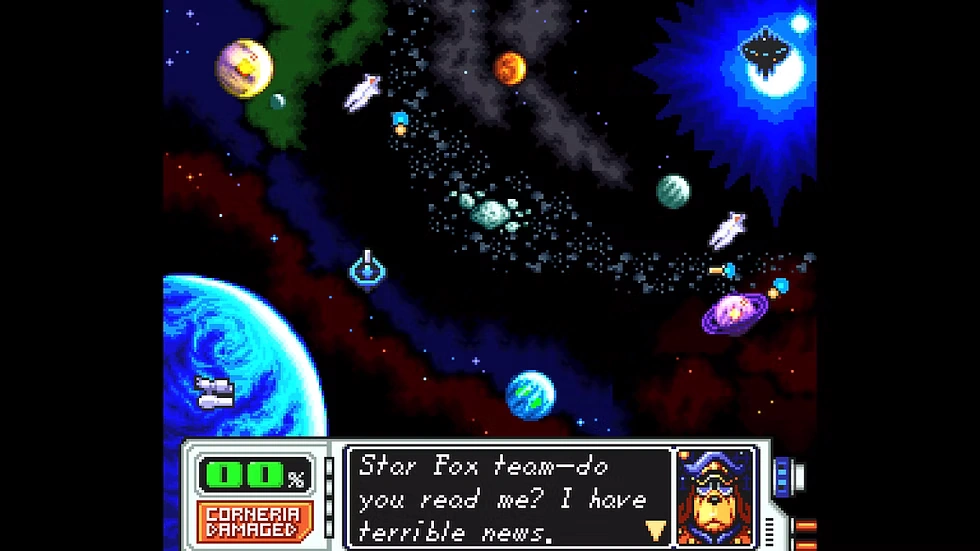

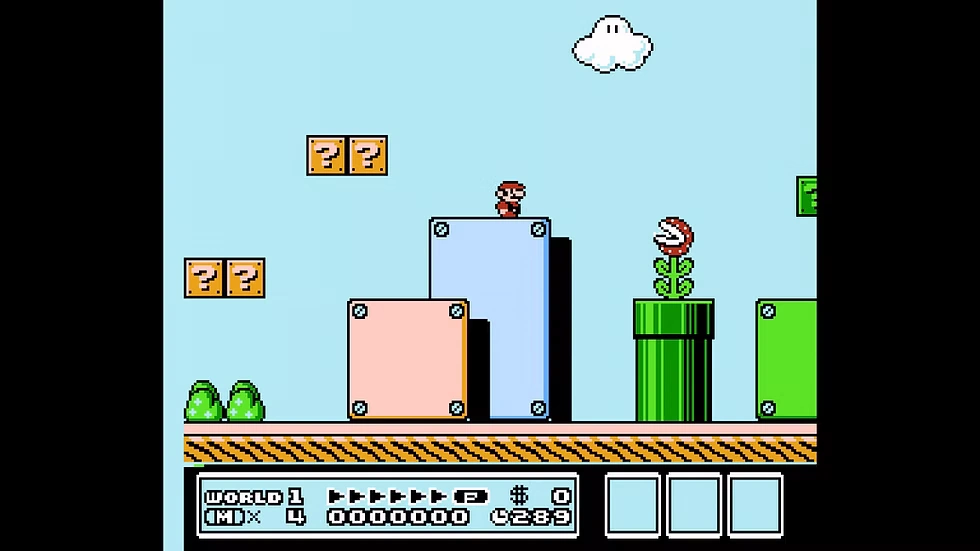

Process the image the way YOU want to. Go for razor sharp pixels or a softer, more CRT like look. Apply scanlines and even simulated shadow or slot masks, the choice is yours.

Cutting edge features

Just like its big brother, the Morph 2K isn’t just about high quality video features, it also contains useful modern features thanks to onboard WiFi and SD card support. This enables easy updates over WiFi and advanced control of the Morph 2K through the web Interface. On the web Interface you can export/import profiles and have access to design tools like the Slotmask creator which can do live mask creation/editing. The SD card can be used for profiles, firmware updates and other extended file support. With the USB-A serial peripheral control port, your Morph 2K can better integrate into your setup by being able to communicate with future switching devices like the Infinity Switch.

Satisfaction guarantee

As with the OSSC, we’re extending our satisfaction guarantee to the Morph 2K too. Try the Morph in your setup and, if it doesn’t work well or you aren’t satisfied with the results, return it within 30 days for a no quibble refund. All that we ask is that you return the unit and all its packaging in good condition and that you cover the return postage costs.

Technical Specifications

Video

• Output: HDMI, resolution up to 1080p60/1440p60 with 4:4:4 colour
• Input: Analogue signal types: composite, s-video, scart, component, and VGA*
• Variable refresh rate
• Ultra low lag and fully buffered framelock modes
• Magiclock dynamic video lock
• Motion adaptive deinterlacing
• Dynamic scanlines with CRT beam simulation
• Slotmask/shadowmask shaders

Audio

• Stereo analogue audio with controllable gain and sample rate
• Digital audio

Wireless

• WiFi system and profile pack updates
• Stay up to date with automatic update checks
• WebUI control and toolset
• Create/manage/rename profiles from smartphone or PC, no need to remove SD card
• MicroSD card slot for updates and user files

While not required for basic usage, a MicroSD is required for firmware updates and other features like presets/profiles.

*VGA supported via universal SCART connector, requires passive VGA2SCART adapter.

For more information, follow PixelFX on social media, join the Discord chat room, participate in our Morph forum or check out the Morph Wiki.
